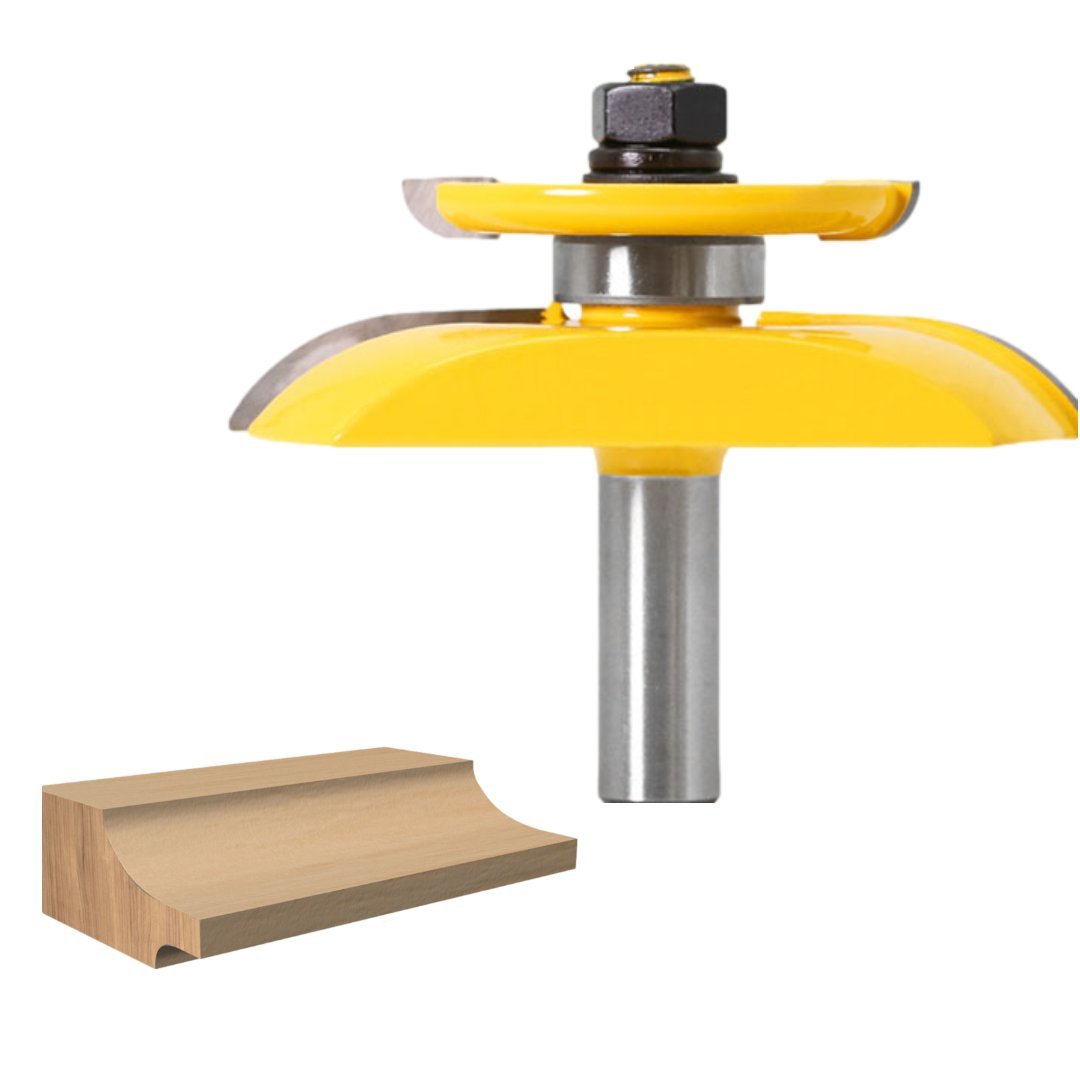

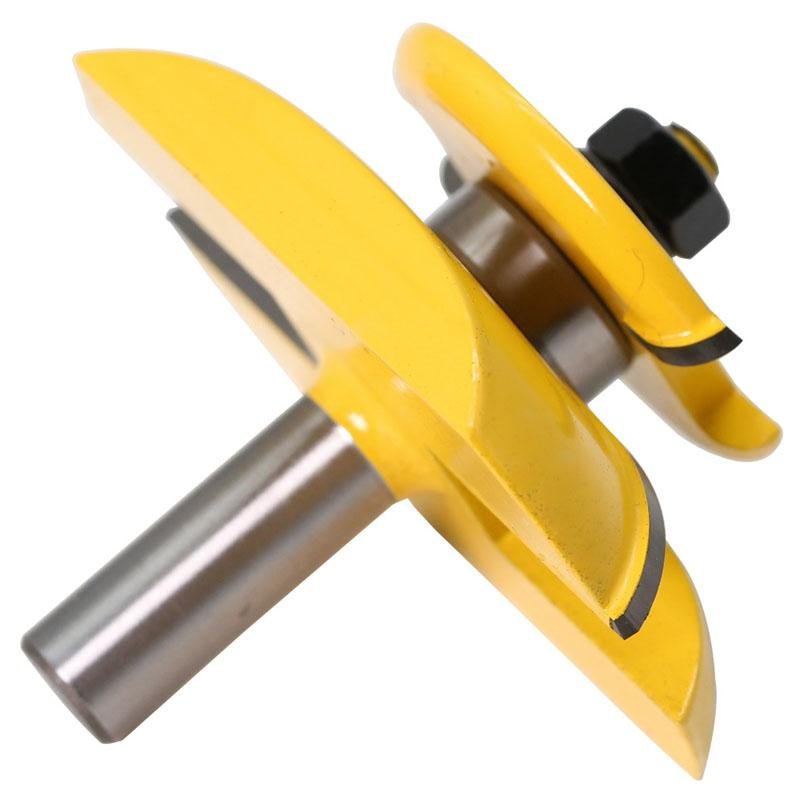

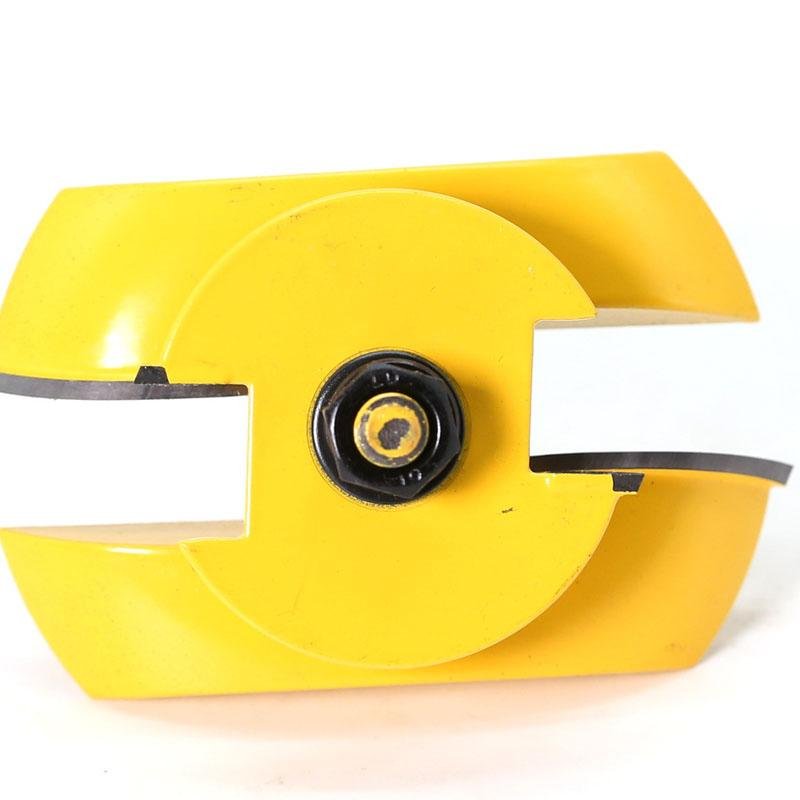

Raised Panel Router Bit - Cove with Backcutter - 1/2" Shank

Raised Panel Router Bit - Cove with Backcutter - 1/2" Shank

$34.95 USD
$44.95 USD $34.95 USD
Sale Sold out
Taxes included.
  • 100% Quality Guarantee
  • 7000+ Satisfied Customers
  • Worldwide Shipping

Timeless, Classic Cabinets Crafted By You

Enjoy the fruit of your labor with our Cove Raised Panel Router Bit

Create elegant, beautiful kitchen cabinetry, wardrobe doors, pantry doors, office desk doors and custom joinery projects.


A Must Have addition to every workshop!

Create Beautiful Panels - The classics are always in fashion, especially when crafted by you

Perfectly Paired - With our Rail & Stile Router Bits, the pieces come together like they were made for each other

Durable - Heat resistant Teflon coating prevents the build up of sawdust, resin and pitch

Versatile - Can be used on all types of timbers - Softwoods, Hardwoods, MDF, Plywood and Particle Board.

Wide Application - From kitchen cabinets to doors and custom projects – the possibilities are yours to explore!

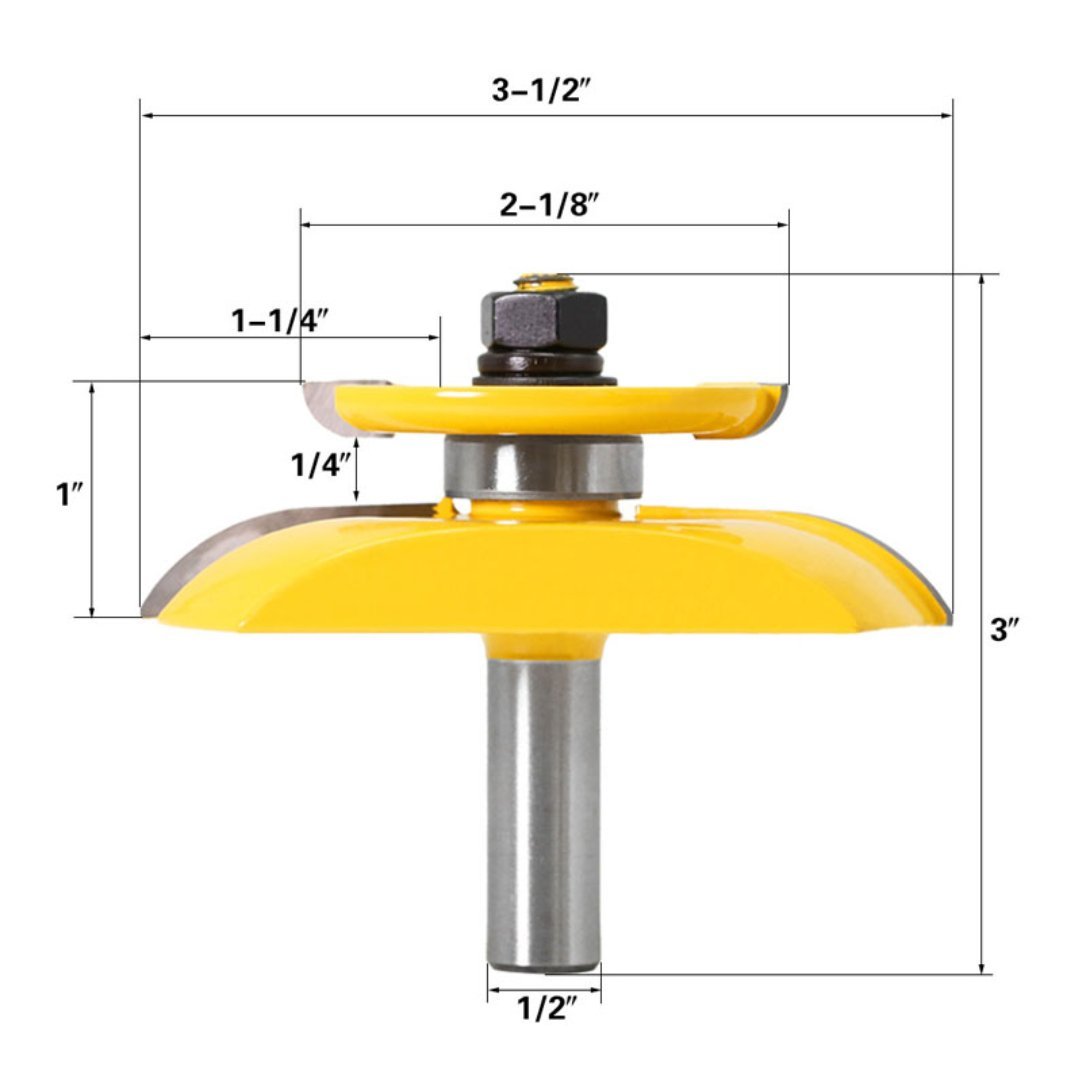

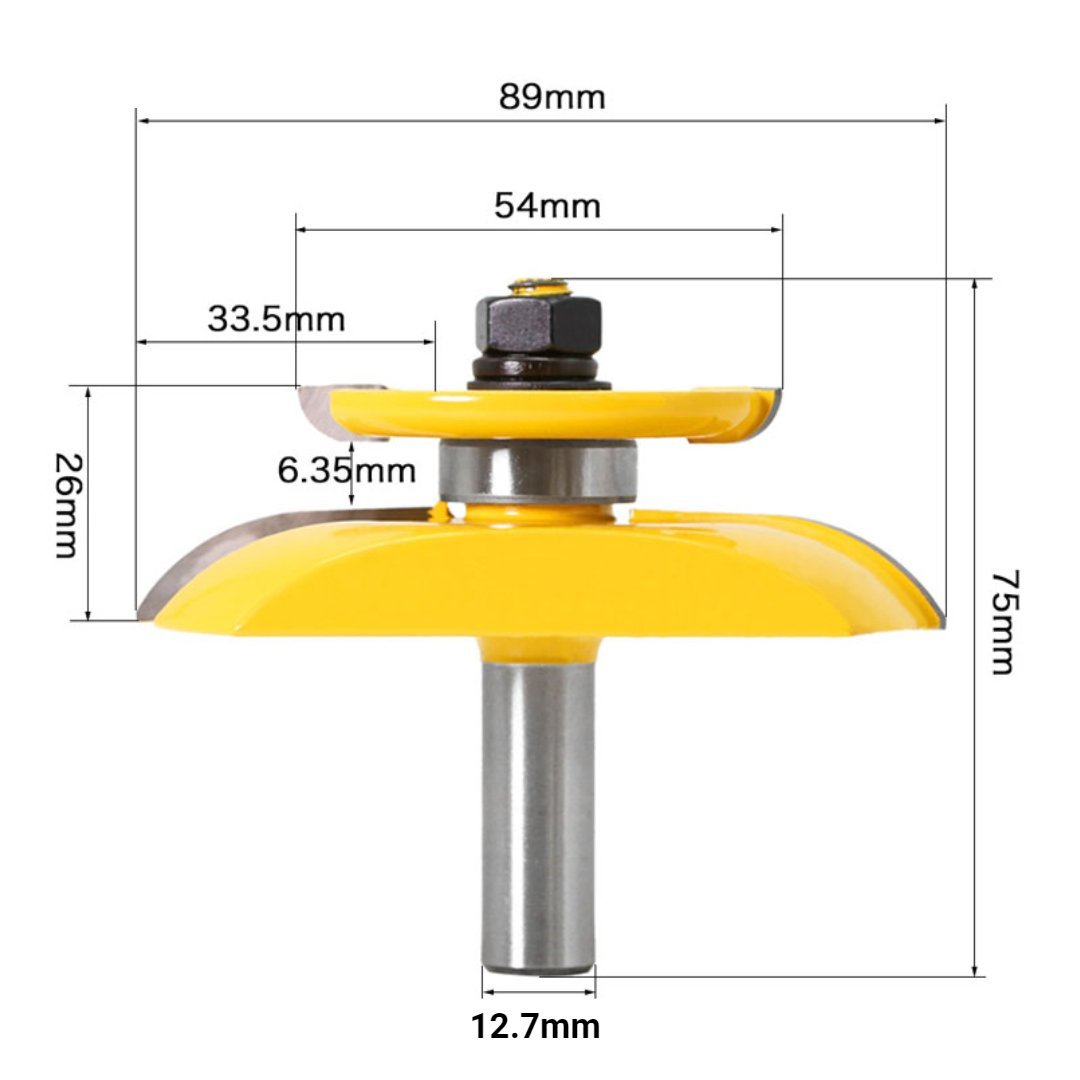

Specifications

These bits must be used in a router table with fence.

Material - Body: Tungsten Cobalt Alloy
Material - Blades: C3 Micro-Grain Tungsten Carbide
Shank Diameter: 1/2 inch (12.7mm)
Minimum Stock Thickness: 3/4 inch (19mm)
Maximum Stock Thickness: 7/8 inch (22.2mm)
Cutting Edges: 2
Cutting Length: 7/8 inch (23mm)

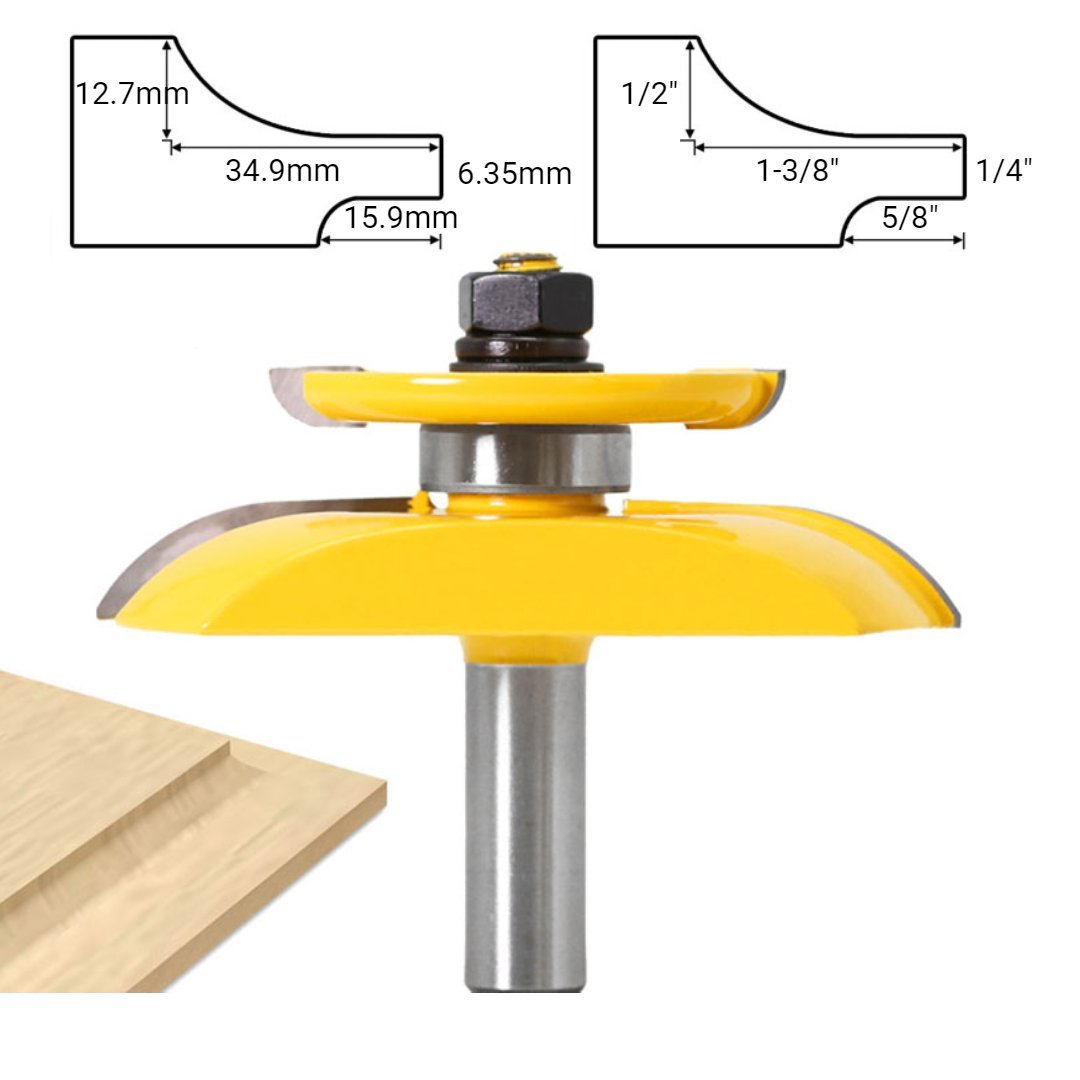

Cutting Depth: Raised Front: 1-3/8 inch (35mm) - Backcut: 5/8 inch (16mm)
Overall Length of Tool: 3 inch (75mm)
Overall Width of Tool: 3 1/2 inch (89mm)

FAQ

Can I use these bits in a hand router?

No, for safety reasons these bits are designed to work in a router table with a fence only, and only at reduced RPM.

At what RPM should these bits be used?

Depending on your router table, we recommend running at reduced speeds up to 12,000 RPM.

Shipping & Delivery

Expect to receive your order within 5-14 business days, depending on where you are in the world.

For remote locations it will take a little longer as our shipping partners need to travel just a bit further.

Tracking numbers are provided for all orders, we also keep track of your order progress and update you if there are any changes or delays.

Please note we are unable to deliver to PO BOX addresses for orders that require a signature to confirm delivery.

View full details

Customer Reviews

Based on 16 reviews
88%
(14)
6%
(1)
6%
(1)
0%
(0)
0%
(0)
M
Max Hartmann

I purchased this router bit while building some replacement raised panel doors for a customer. I searched the Internet and a number of woodworking stores and this was the best value and it was the perfect fit for the replacement styles and rails I was building.

D
Dylan Sauer

Works as described and panel came out good. Had to shim planner table as my opening for bit was not large enough to accept tool. Advise is to go slow and make multi passes thru to make the final cut

M
Mel

Had just a few panels to make so price was important.
Worked as well as any expensive panel cutter I have.
Not sure how it will do in a production application but for the 2
15 x 23 panels I needed it worked fine

B
Brent Paucek

With a little trial and error, for the money this bit is defiantly worth it.

H
Hilton

Used to make cabinet doors worked great for me
